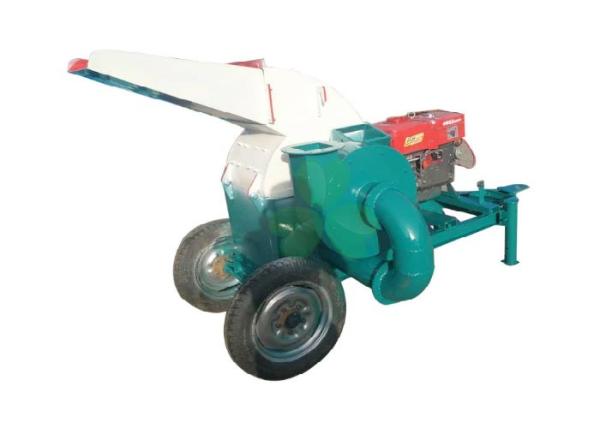

Wood Branch Crusher / Wood Crusher Machine For Sale / Mobile Wood
Crusher
Wood crusher sawdust making machine introduction
Wood crusher sawdust making machine is the special and highly
efficient wood processing equipment for production of sawdust. It
can process logs, wood sticks, tree branches and waste wood
material into sawdust one time. The size of sawdust can be adjusted
in range 1-10mm by changing screen(sieve). So sawdust making
machine can be widely used for production raw material for edible
mushroom cultivation, shaving board,mechanism processing charcoal
and paper making. It is the necessary wood processing equipment for
samll and medium-sized enterprises and individual household.
wood template crusher Applications
This wood shredderr / wood pulverizer/wood chipper/integrate type
machine crushing hard wood wet tree branch is widely used in waste
template processing plant, bamboo plywood processing plant,
wood-based panel factory, composite board factory, power plant
boiler raw material combustion and the use of individual wood
processing plants.
Wood pallet shredder structure is more complex, the use of hammer
broken principle, in front of conveyor belt feeding, feeding port
feeder, which has the first crushing system, except the nail
system, the second crushing system, exhaust dust system , Belonging
to the automated system with the nail removal crusher
Introduction of wood crusher
1 Bigger capacity and the particle size can be adjusted. It can be designed
according to the customers’ needs, making one of crusher to
chipping or crushing, overcoming the shortcomings caused by fast
feeding speed ,use big mouth to feed .
2 High automaton,just need one person or two person feed the big
wood log or board in to the mouth then it can crusher
automatically.
3 Chipper first and crusher second ,chipper can chip wood log or
wood board to 15-35mm thick and 3-5cm long,which is ready to have a
further crushing process by the next crusher ,the second crusher
part will further crush the wood chips and finished size with
1-10mm.
Wood crusher machine features
1 The motor and rotor are installed in the same heavy-duty base,
using coupling direct drive, rotor passes accurate dynamic
balancing test, the hammers are arranged symmetrically.
2 Unique Feeding Design, the feeding inlet is made at the side of
the device to make feeding easily.
3 The shell is welded by steel plate, the site in the crush room
which connects to the materials all use the wearable and
commutative parts and double wear plate.
4 Hammers adopts special abrasion resistent treatment technology,
extend its lifetime greatly.
Technical parameter of machine for produce sawdust
| Model | Specification | Speed(r/min) | Power(KW) | Capacity | Dimension | weight |
| DY-400 | blade qty:4pcs; hammer qty:20pcs feeding port:350*150mm; outlet port:200mm | 2500 | 18.5 | 400-500kg/h | 1000*550*1000mm | 1T |
FAQ
1 Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime,and we are very
glad to test our machine with your raw material.
2 Do You Arrange Shipment For The Machines?
Yes, for FOB or CIF price, we will arrange shipment for you. For
EXW price, clients need to arrange shipment by themselves or their
agents.
3 Suitability of motor?
As there are many voltage standards in different countries in the
world, please send us your exact information of the power supply
available, then we can modify the motor accordingly.
4 After sale service?
we will offer you the best service to you after the sale , the more
detail , you can check it in the Service on our website.
5 How about the documents after shipment?
After shipment, we ll send all original documents to you by
express, including Packing List, Commercial Invoice, B/L, and other
certificates as required by clients.
