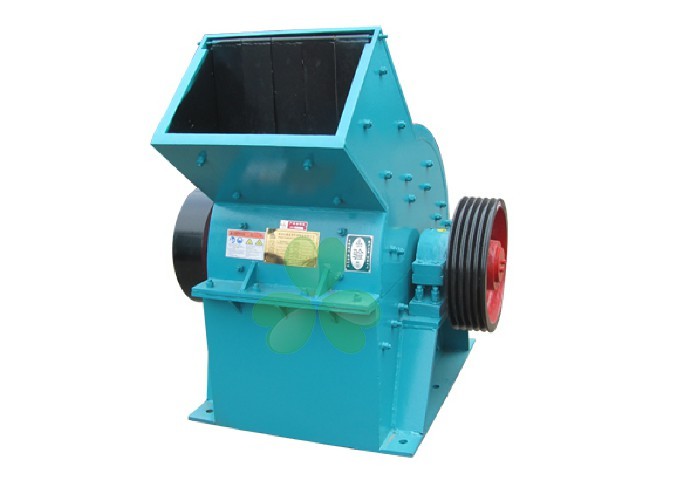

High Quality Mining Crusher Machine / PC Hammer Crusher Machine Spare Parts

PC Hammer crusher machine spare parts for mining is mainly applied to low abrasion materials with medium hardness and compression strength not exceed 100Mpa. Such as coal, salt, chalk, gypsum, bricks, tiles, limestone, etc. It is also used to crush wood chips with strong fiber structure and tenacity, and the waste from asbestos cement to recycle asbestos fiber, etc. In addition, hammer crusher can be not only applied in crushing line and sand production line, but also applied instead of cone crusher.

Working principle of Hammer Crusher machine spare parts for mining :

Hammer crusher(hammer mill) mainly consists of frame, rotor, trapezoidal iron plate, bar grate, etc. And the frame consists of the upper part and the lower part, which are made of welded cut armor plate, while other parts are connected into one by bolts. High manganese steel liners are mounted in the frame and can be replaced after wearing out.

There are several sets of hammers equipped on the main shaft of the hammer crusher in regular distribution. They constitute the rotor with dial and hammer shaft. Driven by the motor and V-belt, the main shaft rotate with rotors. And the rotors spread to the surrounding extensions under the centrifugal force brought from rotating. So when big materials fall into the crushing cavity of hammer crusher, they will be broken into pieces by high speed rotors. The qualified materials after crushing will be discharged from the gap of grate at the bottom, while those unqualified ones will still stay in the crushing part and then discharged when they reach the acceptable size after repeated actions of hammers and trapezoidal iron plates.

The Applications Of Hammer Crusher machine spare parts for mining :

PC800x600 hammer crusher is mainly applied to low abrasion materials with medium hardness and compression strength not exceed 100Mpa. Such as coal, salt, chalk, gypsum, bricks, tiles, limestone, etc. It is also used to crush wood chips with strong fiber structure and tenacity, and the waste from asbestos cement to recycle asbestos fiber, etc. In addition, hammer crusher can be not only applied in crushing line and sand production line, but also applied instead of cone crusher.

Technical Data of PC Hammer Crusher:

Performance and features of Hammer Crusher:

Hammer crusher has the advantages of high product capacity, high crushing ratio, low power consumption, uniform products partial size, simple structure, compact and light, low investment cost, easy to management, etc. The defects are: when crushing very hard materials, it will cause greater wear of hammer and grate and consume more metal; it needs more maintenance time and uniform feeding of materials; when crushing soft-moist materials, the capacity will become significantly lower and even stop because of material jam. In order to avoid jam, the moisture content of materials should be less than 10%-15%.

Q1: Our Advantage
A: * OEM & ODM Support
* Support Technical Service , Installation , Training , After-Sale Service.
* Factory Sale Price.
* We have exported to more than 70 countries.

Q2: What's your Delivery Time ?
A: 5-7 days for single machines , 15-20 days for production line.

Q3: Why choose your factory?
A: * Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivered out.
* We are professional manufacture providing factory price for you.
* we have a professional installation and after-sales staffs.

Q4: How to visit your factory ?
A: * Taking the plane to Zhengzhou International Airport .
* Taking the high-speed rail to Zhengzhou Station .

We also provide free hotel booking and airport pick up service .

Packing & Shipping

1) All the wear out spare parts are packed by plastic films and wooden boxes.
2) Wire cables are used for fastening the machines.
3) FCL: Shipping by standard exporting container.
2) LCL: Poly wood case.

Looking forward to cooperate with you !

HENAN DIANYAN NEW ENERGY TECHNOLOGY CO., LTD. is a professional manufacturer of industrial Shredder equipment, located in Zhenzhou City, China. Since 2006,we factory focused on the development and production of various types of shredder machinery.

The Company has established its wide range of cooperative relations with Kunming University of Science and Technology, Yunnan Agricultural University, Nanjing University of Science and Technology, Southwest Forestry University and other colleges and universities and Kun Dianyan Research Institute ( a science & Technology Institute supported and funded by Chinese Ministry of Science and Technology).

Factory Show:

Our main products include Plastic Shredder, Metal Shredder, Tyre Shredder, Wood Shredder, Garbage Shredder, and so on.

With 12 years development, now we have more than 100 employees, 12000 square meter workshop. Our Machine has exported to 30 countries, such as America, UK, India, Thailand, Chile, UAE, Egypt, and so on.

Customer Visiting:

Our Team:

Dianyan also has passed gained many certification, such as ISO 9001: 2008 ,CE and SGS.
