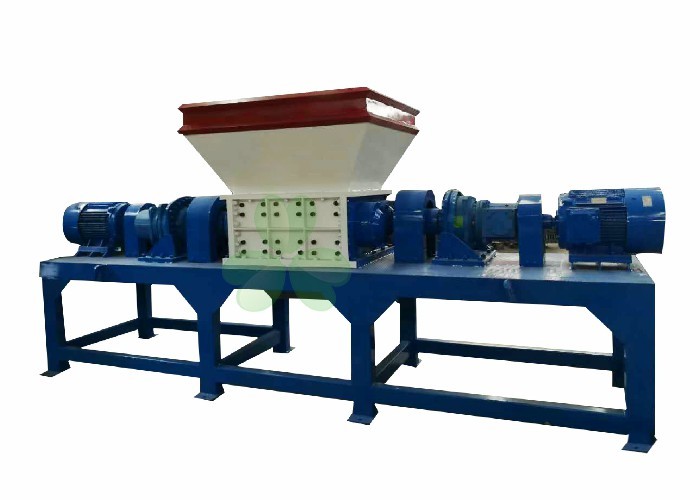

Durable Double Shaft Shredder Machine High Capacity Copper Cable
Shredder Machine
Brief Production
Dianyan double shaft shearing type shredders , known by shearing,
tearing and pressing to decrease the material size, is mainly used
for shredder tires, films, bags, metal, woods, pipes and other
plastic waste .Dianyan double shaft shredder adopt Siemens motor
with EU CE certification and PC auto-control system totally, set up
the functions of start-up,halt,reversal,overloading and auto
reverse control, with the characteristic such as low speed,big
torque,low noise etc.
Working principle
Double shaft shredders use the basic principle of hammer hitting,
upper feeding inlet with filtering belt which is driven by high
speed and big torque motor; hammer in the main rotor hits the
material which is entering crusher chamber in turn and shreds the
material into regular one.
Important Notes
Knife thickness of shredder
includes:15mm,20mm,40mm,50mm,75mm,100mm,you can select knife on the
basis of shredded material.
Application:
1. Plastic: large head material, engineering plastics, paint
barrels, glass
2. Appliances: TV sets, monitors, microwave ovens, dishwashers and
other small and medium-sized home appliances shell, electrical
equipment
3. Electronic products: computer host shell, hard drive, CD-ROM,
battery shell
4. Pipe: PVC, PE, PP and other pipe, urban water supply pipe, drain
pipe
5. Wood: logs, pallets. Wood chop board, piece of furniture
6. Rubber: waste car tires, conveyor belt
7. Metal: metal sheet such as copper, aluminum or iron, aluminum
castings and crush blocks, motorcycles, car engine housings, oil
filters
8. Worn clothes and so on.
Advantage
1. Unique multiple combination sealing structure effectively blocks
the contact of broken material and grease.
2. The liquid material can protect the bearing, gear, ensuring
continuous and stable operation of machine.
Double shaft shredder technical parameters:
| Model | Knife Size | Power(kw) | Capacity(T/H) | Knife Quantity(PCS) | Reducer | Machine Size (Meter) | Weight (Ton) |
DY-600 (6-8teeth) | Φ200×20 | 11×2 | 0.3-0.5 | 30 | 350×2 | 2.6×1×2.1 | 2 |
| Φ220×20 | 11×2 | 0.4-1 | 30 | 350×2 | 2.6×1.1×2.1 | 2.2 |
DY-800 (6-12teeth) | Φ300×20 | 15×2 | 0.8-1.2 | 40 | 400×2 | 3×1.2×2.2 | 3 |
| Φ300×30 | 18.5×2 | 1-1.5 | 26 | 400×2 | 3×1.2×2.2 | 3.5 |
| Φ300×40 | 22×2 | 1.5-2 | 20 | 500×2 | 3×1.2×2.2 | 5 |
DY-1000 (6-12teeth) | Φ300×30 | 30×2 | 1.5-2 | 34 | 400×2 | 3.4×1.25×2.2 | 6 |
| Φ300×40 | 37×2 | 1.8-2.5 | 26 | 500×2 | 3.4×1.25×2.2 | 6.3 |
| Φ400×40 | 37×2 | 2-2.5 | 26 | 500×2 | 3.4×1.25×2.2 | 6.5 |
DY-1200 (6-18teeth) | Φ300×40 | 45×2 | 2.5-3 | 30 | 650×2 | 3.8×1.25×2.2 | 8 |
| Φ400×40 | 45×2 | 2.8-3.3 | 30 | 650×2 | 3.8×1.25×2.2 | 8.5 |
| Φ500×40 | 55×2 | 3-3.5 | 30 | 650×2 | 3.8×1.25×2.2 | 9 |
DY-1500 (6-18teeth) | Φ300×30 | 55×2 | 3.8-4.5 | 50 | 750×2 | 4.4×1.5×2.5 | 11 |
| Φ400×40 | 55×2 | 4-5 | 38 | 750×2 | 4.4×1.5×2.5 | 12 |
| Φ500×50 | 75×2 | 4.5-5.5 | 30 | 750×2 | 4.4×1.5×2.5 | 14 |
| Φ500×50 | 75×2 | 5-6 | 30 | 750×2 | 4.4×1.5×2.5 | 16 |
DY-1800 (9-18teeth) | Φ400×40 | 90×2 | 6-7 | 45 | Zsy355*2 | 5.3×2.1×2.8 | 17 |
| Φ550×50 | 90×2 | 7.5-8.5 | 36 | Zsy400*2 | 5.3×2.1×2.8 | 18 |
| Φ600×60 | 90×2 | 9-10 | 30 | Zsy400*2 | 5.3×2.1×2.8 | 19 |
DY-2000 (9-18teeth) | Φ550×50 | 110×2 | 10-13 | 40 | Zsy400*2 | 6×2.2×3.5 | 22 |
| Φ600×60 | 110×2 | 12-16 | 34 | Zsy450*2 | 6×2.2×3.5 | 23 |
| Φ650×60 | 110×2 | 15-20 | 34 | Zsy450*2 | 6×2.2×3.5 | 25 |
Our Services
Our Service Philosophy
1. Pre-sale services: enthusiasm, patient
Provide you the proper plan, process flow design and manufacturer
equipment according to your special demand.
2. Sale services: servant
Send technicians to the job site for guiding the installation and
adjustment, training operators and finishing the check and accept
together with you.
3. After-sale services: faithfulness
To establish long term relationship with you, we will regularly pay
return visit to customers.
Q1: Our Advantage
A: * OEM & ODM Support
* Support Technical Service , Installation , Training , After-Sale
Service.
* Factory Sale Price.
* We have exported to more than 70 countries.
Q2: What's your Delivery Time ?
A: 5-7 days for single machines , 15-20 days for production line.
Q3: Why choose your factory?
A: * Our products are manufactured strictly according to national
and international standard, and we take a test on every grinder
before delivered out.
* We are professional manufacture providing factory price for you.
* we have a professional installation and after-sales staffs.
Q4: How to visit your factory ?
A: * Taking the plane to Zhengzhou International Airport .
* Taking the high-speed rail to Zhengzhou Station .
We also provide free hotel booking and airport pick up service .
Packing & Shipping
1) All the wear out spare parts are packed by plastic films and
wooden boxes.
2) Wire cables are used for fastening the machines.
3) FCL: Shipping by standard exporting container.
2) LCL: Poly wood case.
Looking forward to cooperate with you !
