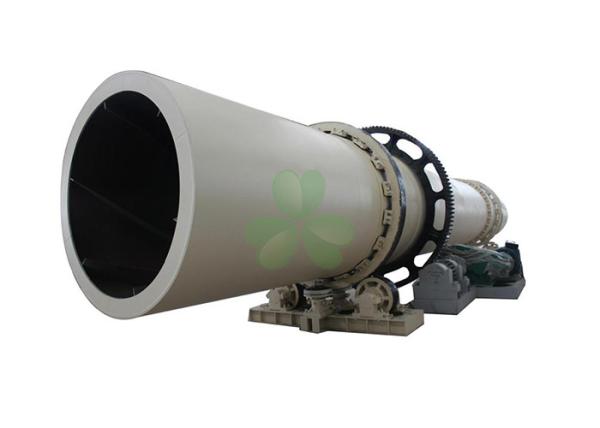

Seaweed Rotary Dryer / Electric Rotary Dryer / Solid Waste Dryer
Introduction of rotatry dryer
Sawdust dryer with heating furnace, feed port, rotating cylinder,
delivery pipe, dust collector and discharge port. Wet material is
continuously sent to the drying cylinder by a conveyor. Heat air
makes full contact with the material. Being delivered and scattered
by the high-speed hot air, water in the wet material is evaporated.
The material gets fully dried in the rotating cylinder.
Sawdust dryer is widely used in industries like biomass fuel,
charcoal making, wood pellet fuel, sawdust briquette, farming and
sand etc. The applicable materials are wood powder, wood shavings,
sawdust, wood chipps, straws, grass, sand, etc
erformance Features of High Efficiency Rotary Dryer
1 It can change operation parameters according to different
material property , the dryer cylinder can form full section
material fall which makes the heat exchange more fully.
2 New type feeding and discharging devices completely eradicate the
disadvantages of traditional dryer like feeding jams, feeding
discontinuously and unevenly, returning materials, and reduce the
load of dust removal system .
3 Scale plate sealing is used to connect shell and feeding and
discharging device , good sealing greatly reduce the shell internal
heat loss, thus directly reducing the fuel consumption.
4 Counter-current drying method obtains higher evaporation
intensity; Fair current drying method and indirect drying way are
suitable for drying temperature sensitive material.
5 New burner satisfies the customers’ demand for saving energy and
high efficiency. It can choose diesel oil, heavy oil, natural gas,
coal gas etc to be fuel instead of the only choice for coal as fuel
in the past.
Rotary Drying Machine Working Principles
1 Rotary Dryer is made up of cylinder, lifting plate, transmission,
supporting devices and others.
2 Based on reasonable layout an alternate angle-change equally
spaced in cylinder, the lifting plate scatters the wet material
inside rotating cylinder.
3 Hot air flow turns water into steam letting into air, and aimed
dry material is achieved.
Main techincal parameters
Technical Parameters of DY1.2×10 biomass rotary drying machine for
chicken manure, saw dust Rotary drum dryer price:
| Model | Shell diameter (mm) | Shell length (mm) | Shell volume (m3) | Rotary speed (r/min) | Power(kW) | Weight(t) |
DY1.5×15 | 1500 | 15000 | 26.5 | 1--5 | 15 | 19.2 |
FAQ
1 Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime,and we are very
glad to test our machine with your raw material.
2 Do You Arrange Shipment For The Machines?
Yes, for FOB or CIF price, we will arrange shipment for you. For
EXW price, clients need to arrange shipment by themselves or their
agents.
3 Suitability of motor?
As there are many voltage standards in different countries in the
world, please send us your exact information of the power supply
available, then we can modify the motor accordingly.
4 After sale service?
we will offer you the best service to you after the sale , the more
detail , you can check it in the Service on our website.
5 How about the documents after shipment?
After shipment, we ll send all original documents to you by
express, including Packing List, Commercial Invoice, B/L, and other
certificates as required by clients.
